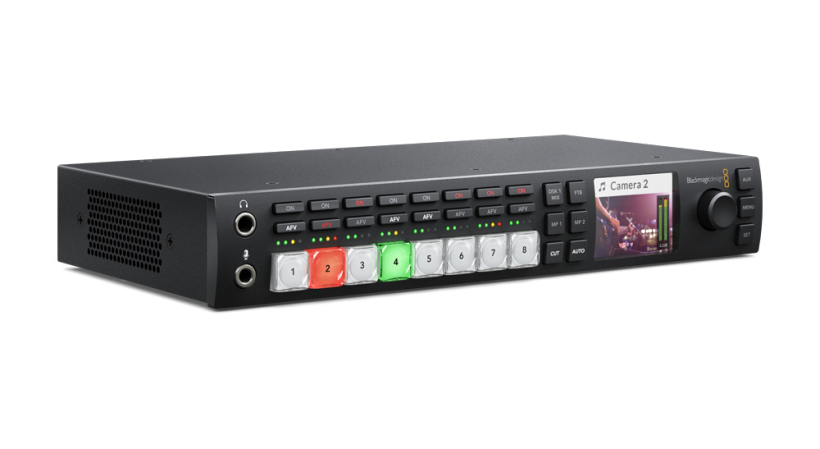

Description

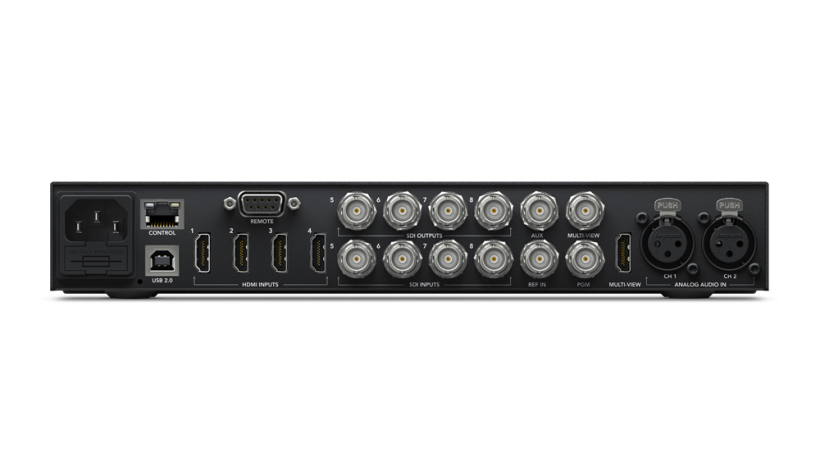

– 4 x 3G-SDI and 4 x HDMI inputs for a total of 8 inputs, all with auto re‑sync.
– Supports all video formats from SD to 720p, 1080i and 1080p HD up to 60fps.
– 1 x built in multi view for 8 sources, as well as preview and program.
– Built in media pool graphics storage for 20 RGBA stills.
– Built in DVE with 3D borders and drop shadow.
– Transitions include cut, mix, dip, SMPTE wipes and more.
– 1 upstream keyer including chroma keyer plus 2 downstream keyers.
– 1 auxiliary output with front panel aux switching buttons and LCD screen for viewing.
– Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
– Balanced XLR stereo analog audio inputs .
– Internal sources include black, color bars, two color generators and 2 media player outputs.
– Ethernet connection for computer connection. Mac and Windows control panel software included.
– Compatible with all ATEM Broadcast Panel control panels when hardware panel is required.
– Black Burst and HD-Tri-Sync genlock input for integration into large systems.
– Compact ⅔ rack unit size is perfect for when in a portable solution is required.
– Desktop or rack mountable using the optional Teranex Mini Rack Shelf.
