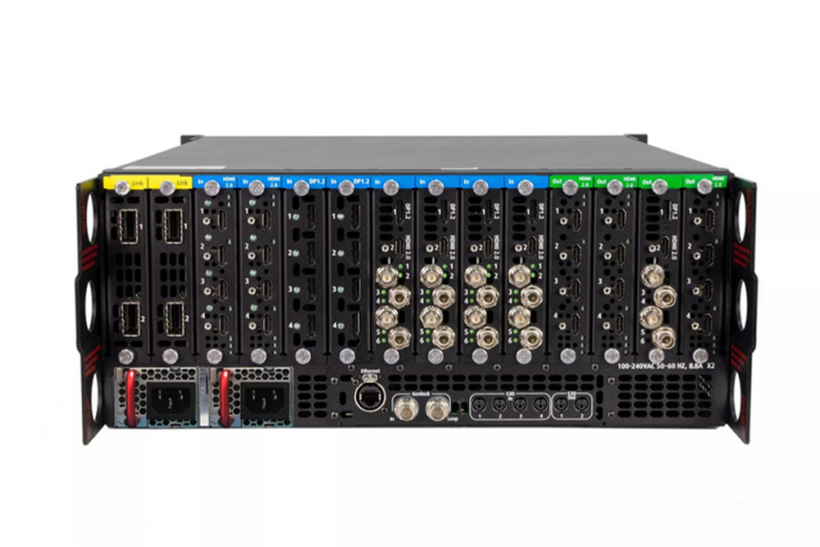

Barco E2 Gen 2 Video Processor

The Barco E2 platform – the robust, versatile and scalable advanced switching and processing system.

Each E2 System is paired with a full cable package, racked in a 15RU Shockmount Rack complete with UPS, network switch, accessories and E2 Chassis.  Our E2 configurations do not change, see below for standard configuration.  Multiple E2’s are available and can be linked for expanded i/o and processing.

Category:
ADD TO QUOTE

Description

Supporting native 4K input and output, it was the first screen management system to manage 4K projector blends with refresh rates up to 60Hz with full 4:4:4 color sampling and 12bit processing.  Multiple E2s can be linked together to process extremely large pixel canvases supporting the largest displays available.

The eightforty E2’s are configured with the following I/O and Processing:

INPUTS

  • 2x 4K60 Tricombo Input Cards (R9004785) HDMI/DP/12GSDI/QUADSDI
  • 3x HDMI 2.0 Quad Input Cards (R9004791) HDMI 2.0 4K60
  • 3x DP 1.2 Quad Input Cards (R9004793) DP 1.2 4K60

OUTPUTS

  •  2x 4k60 Tri-Combo Output Cards (R9004786) HDMI/DP/12G SDI/QUADSDI
  • 2x HDMI 2.0 Quad Output Cards (R9004792) HDMI 2.0 4K60

PROCESSING

  • CXP Expansion Link Cards + Cables to link multiple E2
  • 8x E2 VPU Cards (R9004747)

Optional: EC-50 Controller with built-in Intel NUC computer.
