Marshall CV730-BK PTZ Camera

The Marshall CV730 features a 30x optical zoom block and flexible 12GSDI/HDMI/IP simultaneous outputs with crystal clear UHD images up to 3840x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

Featuring 12GSDI, HDMI2.0, and IP simultaneous outputs from a professional level 9.2MP 1/1.8″ UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.

Category:
ADD TO QUOTE

Description

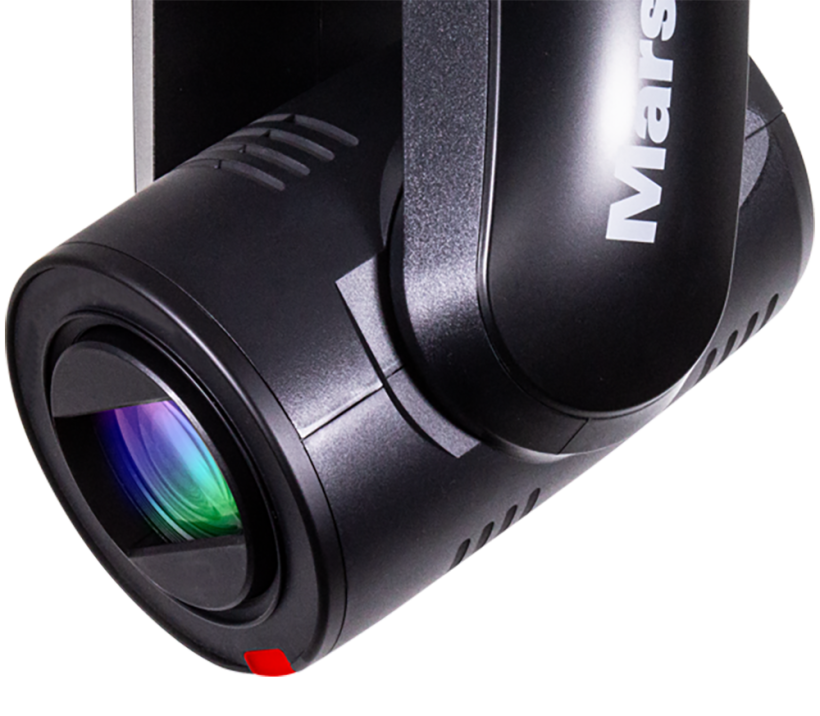

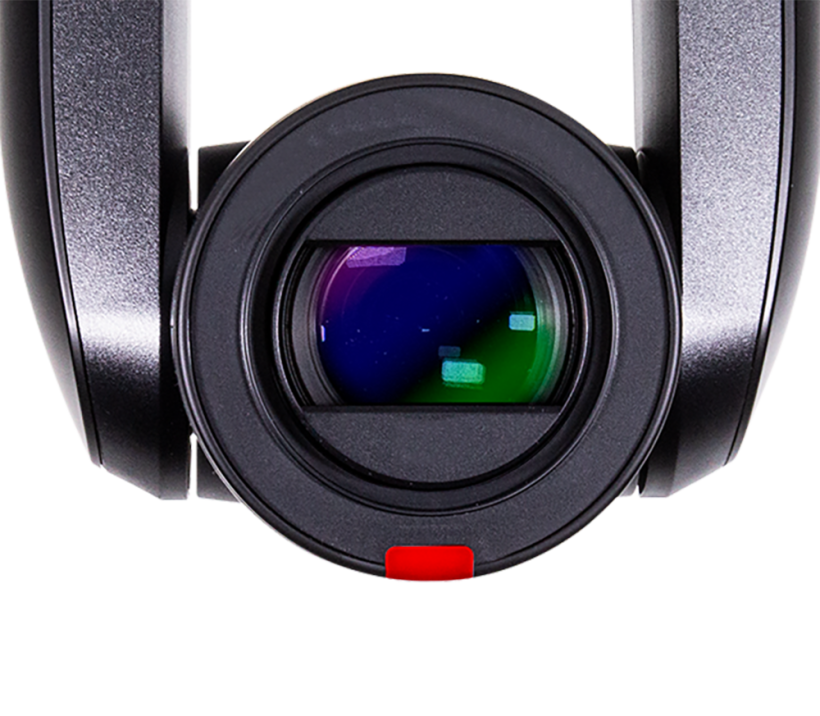

The Marshall CV730-BK PTZ Camera is constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

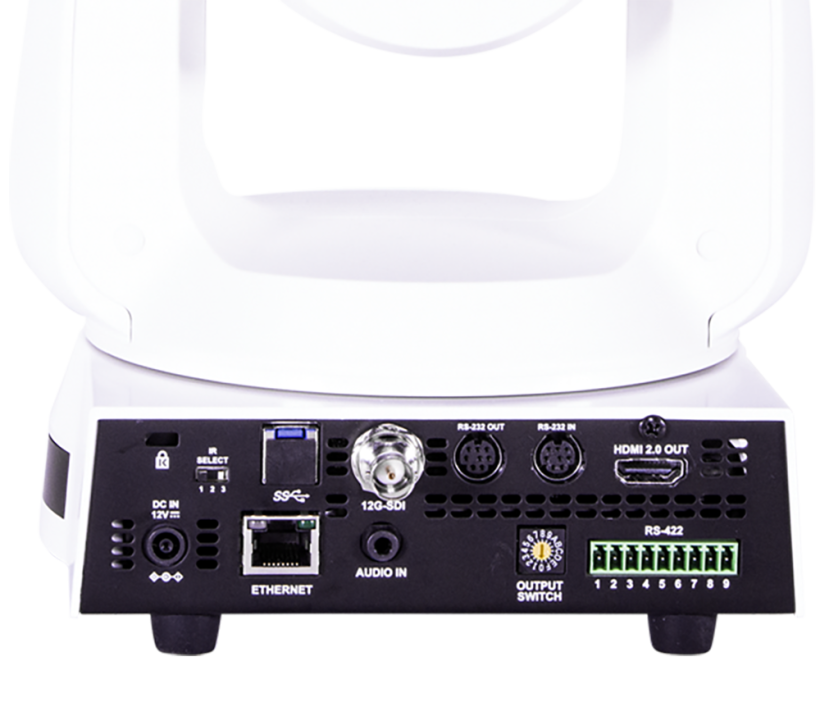

Install one-cable to camera for all functions (power, control, audio, video), or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.



  • – 9.2 Megapixel Sony UHD sensor (1/1.8″)
    – 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
    – Smart Auto-Focus System; AI-enabled focus ensures faces stay in focus
    – 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
    – 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs
    – 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
    – 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
    – IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
    – 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
    – 12V Power Supply included and PoE++ (IEEE802.3bt)
    – Free-D protocol support and CGI protocol commands
    – Min. Illumination – 0.05 lux (F1.6, 50IRE, 30fps)
